AccurAPM Module

Accur3D + GIS

See your assets in 3D, and on the map.

Accur3D adds intuitive 3D model visualization to AccurAPM, helping users navigate and understand complex asset structures through a visual representation of the physical environment. Asset GIS extends the same idea outward: assets, equipment and pipelines are placed at their real geographic locations on an interactive map, with live AccurAPM data readable directly from it.

Visualize

Complex structures

Navigate

Asset context in 3D

Locate

Assets & pipelines on the map

See Your Assets in 3D All modules

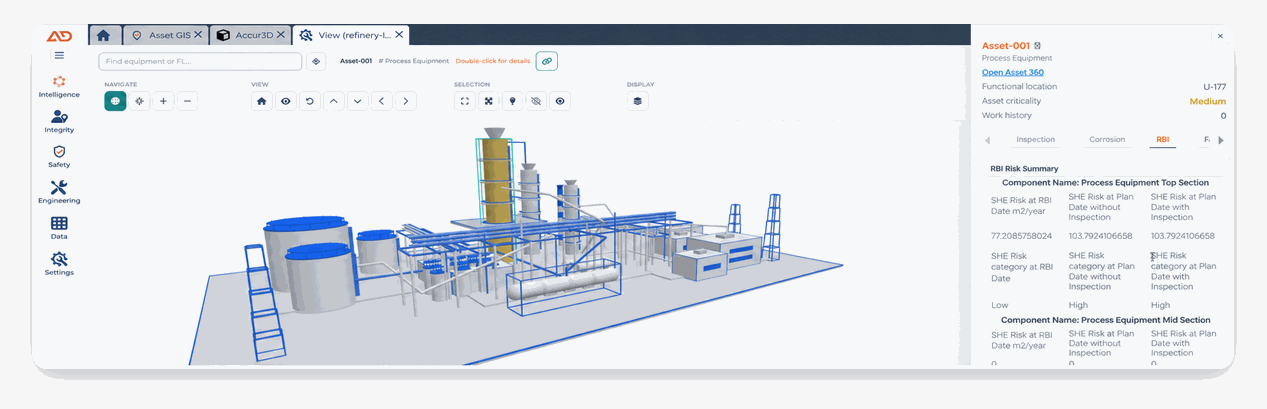

AccurAPM Accur3D: a 3D plant model with Asset-001 selected in place, and a side panel showing its functional location, asset criticality and RBI risk summary — integrity data opened from the model rather than from a tag list.

Capabilities

Key capabilities

✓Intuitive 3D model visualization.

✓Visual support for navigating complex asset structures.

✓A graphical complement to asset information managed within AccurAPM.

✓Interactive GIS map locating assets, equipment and pipelines geographically.

✓Allocation of individual assets and pipelines to exact latitude and longitude.

✓Live AccurAPM data accessed directly from the GIS interface.

Asset GIS

Assets on the map

Asset GIS gives AccurAPM a geographic dimension. Individual assets, equipment and pipelines are allocated to their exact locations and shown on an interactive map, so a site is read by position rather than by tag code — and the platform’s live data is available from the map itself.

✓Geographically locate, visualize and monitor assets and pipelines on one interactive map.

✓Allocate assets, equipment and pipelines to exact latitude and longitude, and save marker positions.

✓Open live AccurAPM data directly from the GIS interface, without leaving the map.

✓A unified, location-based view of asset integrity, inspection activity and risk exposure.

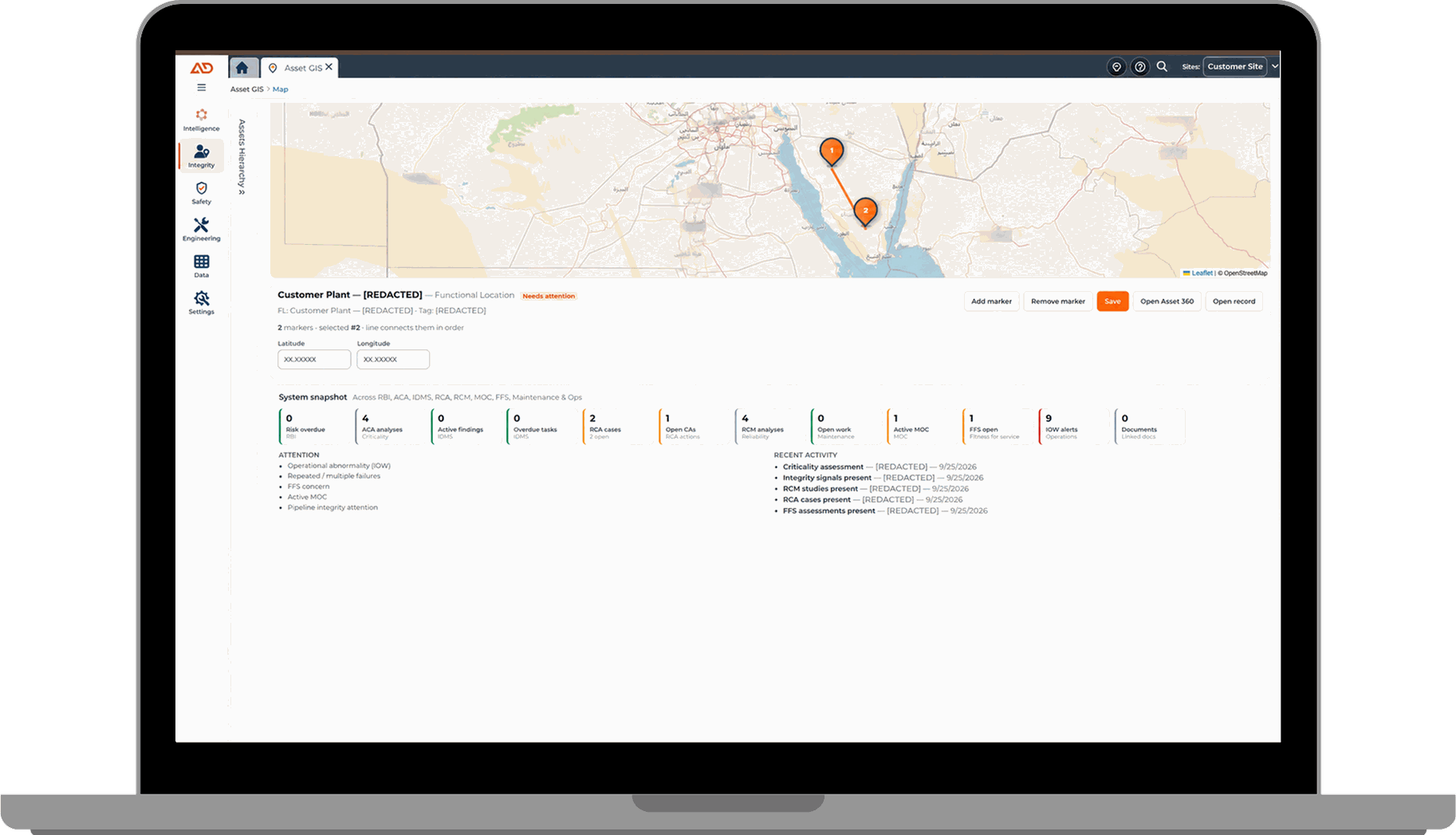

The Asset GIS map open on a customer plant, with two numbered markers placed on the site and a line connecting them, latitude and longitude fields below, and a system snapshot row counting risk, criticality, findings, RCA cases, RCM analyses, MOC, FFS and IOW alerts. — Asset GIS — assets placed by location, with the platform’s integrity snapshot read from the map.

Outcomes

Business value

✓Make complex asset structures easier to understand and navigate.
✓Provide users with a more visual way to interact with asset context.
✓Support clearer communication around physical equipment and structures.
✓Give a unified, location-based view of asset integrity, inspection activity and risk exposure.
✓Monitor geographically distributed assets and pipelines from one map.

How it connects

Connected workflow

Accur3D and Asset GIS are visualization capabilities within the broader AccurAPM module ecosystem, complementing the platform's asset hierarchy and engineering information — one by physical structure, the other by geographic position.

See Your Assets in 3D

Bring us your current integrity challenge, workflow or system landscape and we will show how Accur3D fits into it.

Tell us here and we will come back to you — no need to go anywhere else on the site.
